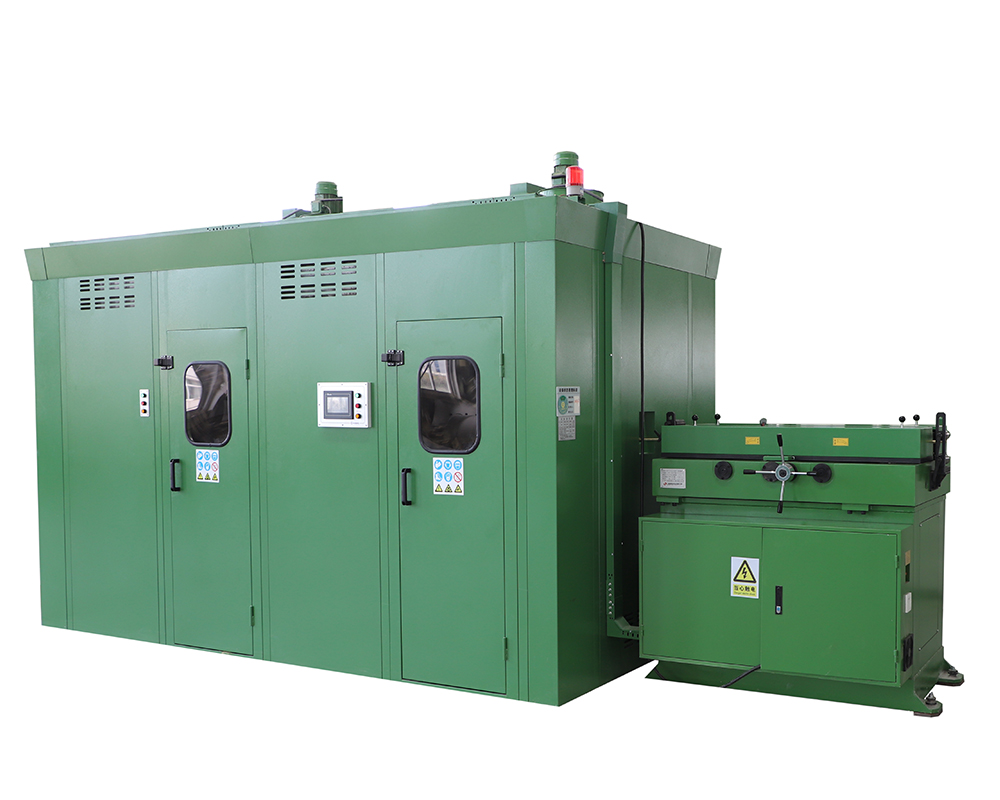

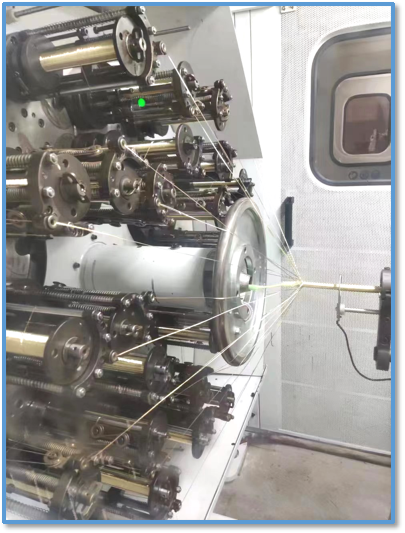

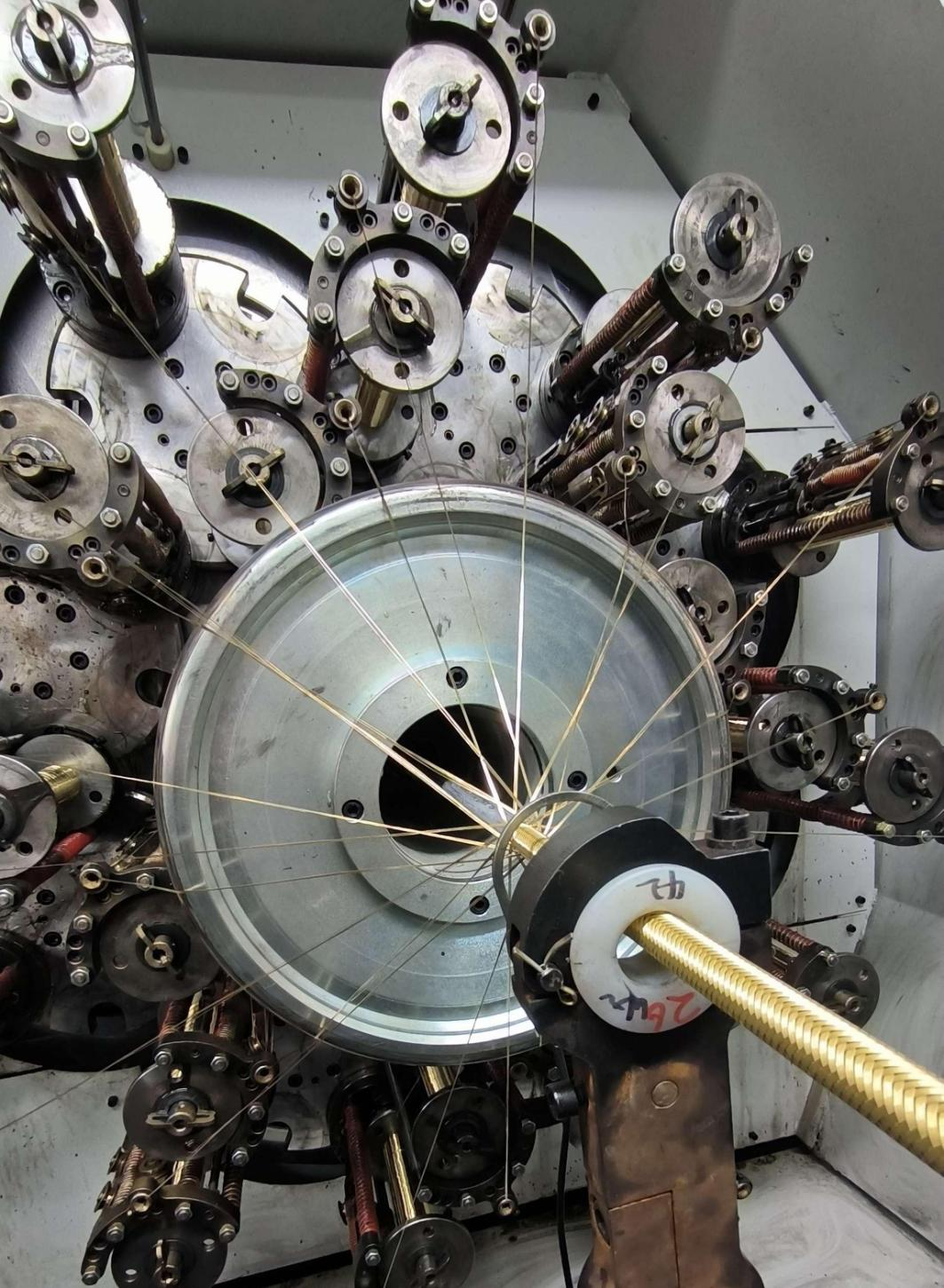

Overview Of BZL Braiding Machine：

BZL series braiding machine is a new type of braiding machine developed by our company in BZV series products, which has the characteristics of compact structure, high speed and good braiding quality. The main machine adopts BZV-series track disc structure. It consists of BZL2 type and BZL3 type, in which BZL2 has a 2×2 braided structure and BZL3 type has a 3×3 braided structure.

Highlights Of BZL Braiding Machine：

1.The spindle has a large wire capacity: 7KG/ spindle（steel wire）

2.Fast running speed.

3.The main engine and the tractor are driven by their own motors. Through PLC control and good man-machine interface, the speed of the main engine and the tractor is effectively controlled to obtain the best braid process requirements.

4.Slow tram drive function

5.Separate drive function of tractor.

6.Automatic lubrication system.

7.Broken wire detection, tube blank detection, medium film detection and tension detection device, and automatically alarm/stop if there is any problem.

8.Intelligent fault alarm/parking prompt function.

Parameters Of BZL Braiding Machine：
